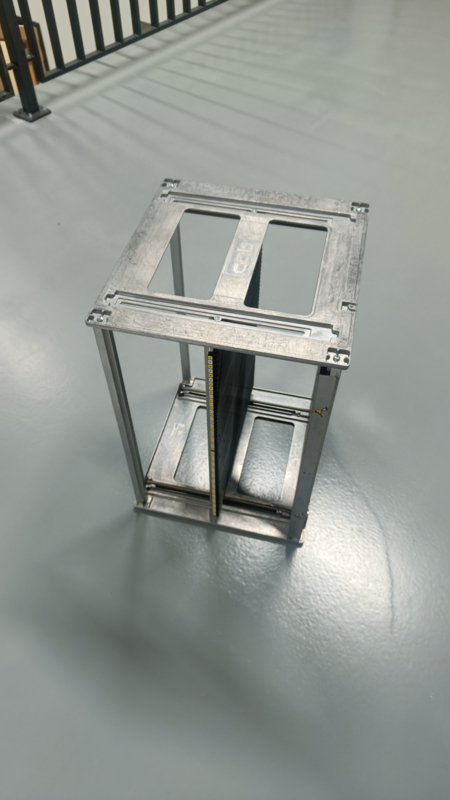

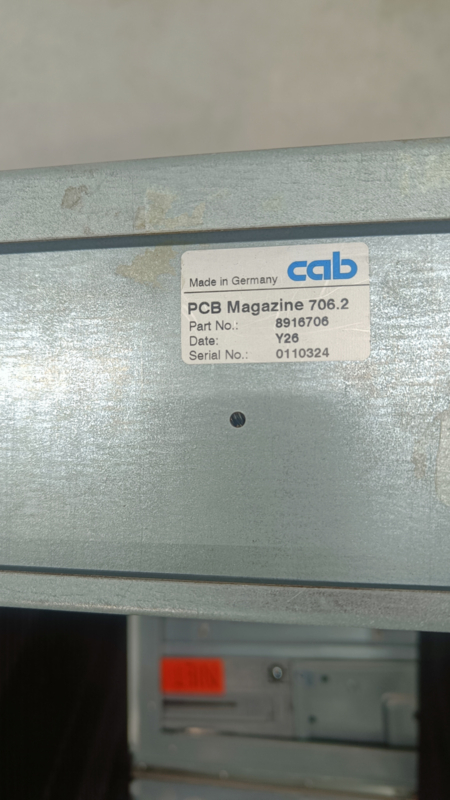

CAB PCB Magazine x45
We hereby offer a bulk set of 45 PCB Magazines.
| Category | Parameter | Value | |
| General | Name | ESD Magazine Rack | |
| General | Model | 9805301E | |
| General | Adjustment Type | Handle (Gear track) | |
| Dimensions | External Size | 535 × 530 × 569 mm | |
| Dimensions | Reference (A / B) | A: 34 mm / B: 37 mm | |
| Dimensions | Adjustable Range | 45 – 460 mm | |
| Structure | Depth | 3.5 mm | |
| Structure | Width | 5 mm | |
| Structure | Pitch | 10 mm | |
| Structure | Slots | 50 | |
| Weight & Load | Weight | 10.2 kg | |
| Weight & Load | Load Capacity (Bearing) | 20 kg | |
| Design | Baffle Mechanism | Spring lever | |
| Design | Static Electricity Index | 10⁴ – 10⁸ | |
| Design | Side Panel | 5-piece panel assembly | |
| Design | Bottom Plate Material | Metal | |
For a quote, please don't hestitate to contact us.
