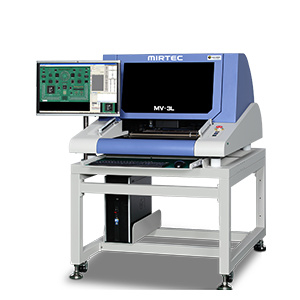

Mirtec MV-3L Desk Top AOI
| Specification | MV-3L |
|---|---|
| Machine Type | Desktop / Benchtop AOI |
| Operating System | Windows XP Professional |
| Software Version | Mirtec Inspectr 4.x / 5.x |
| Inspection Type | 2D AOI with optional laser height inspection |
| Top Camera | 5MP Camera |
| Optional Top Camera | 10MP ISIS / CameraLink |
| Side Cameras | 4× 5MP or 10MP SIDE-VIEWER cameras |
| Camera Interface | CameraLink |
| Lens System | Precision telecentric compound lens |
| Lighting System | 8-phase RGB / color LED lighting |
| Minimum Component | 0402 metric / 01005 imperial |
| Inspection Items | Missing part, polarity, skew, tombstone, solder bridge, flipped IC, solder defects |
| 3D Capability | INTELLI-BEAM laser height detection |
| PCB Inspection Area | Up to 450 × 400 mm |
| PCB Thickness | 0.5 – 3 mm |
| PCB Weight | Up to 3 kg |
| Positioning System | Closed-loop micro stepper |
| Positioning Resolution | 3.7 µm |
| Repeatability | ±20 µm |
| Power Requirement | 110VAC / 100–240VAC single phase, 50/60Hz |
| Air Requirement | None |
| Dimensions | Approx. 975 × 1200 × 655 mm |
| Weight | Approx. 160 kg |
