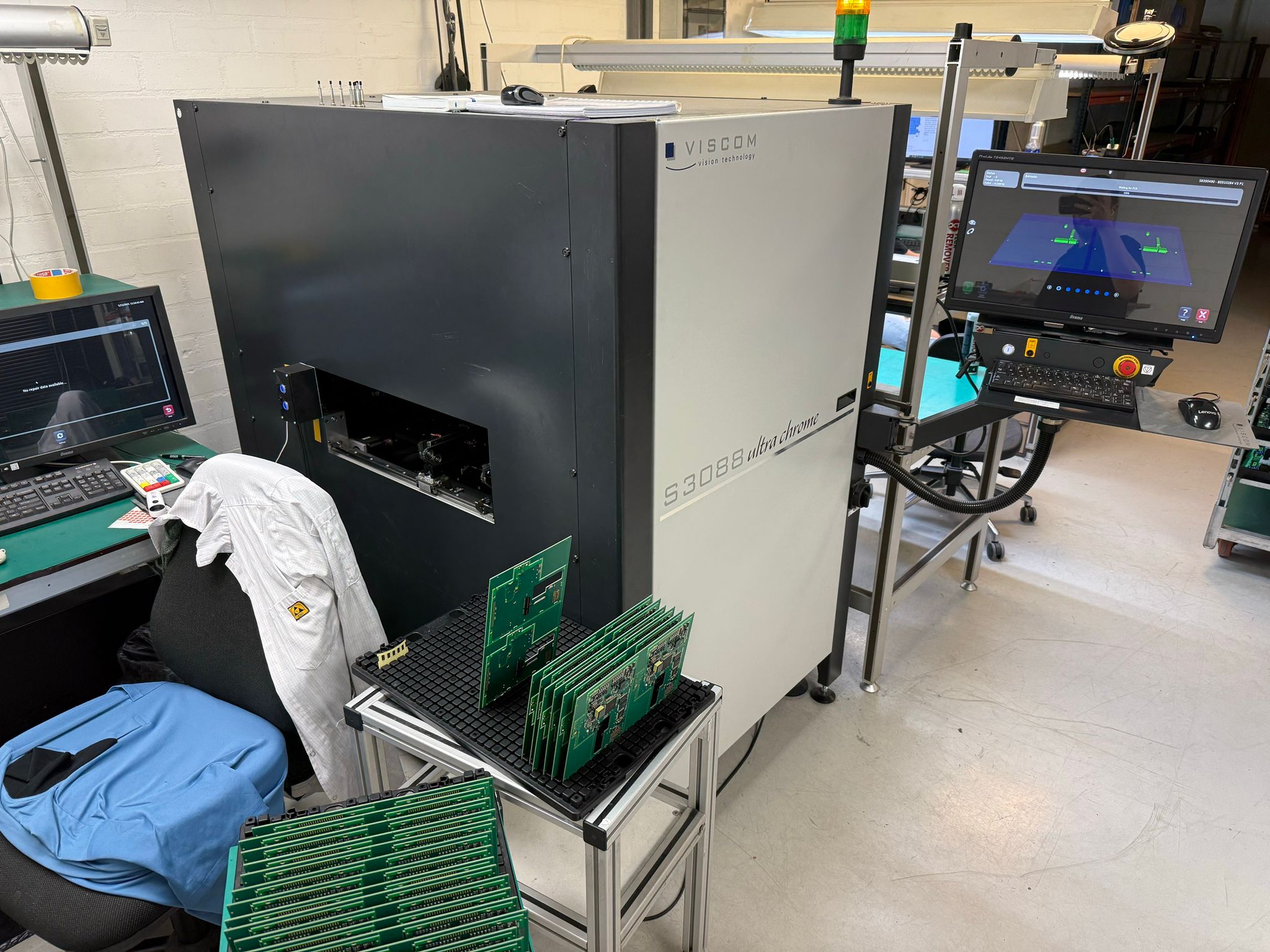

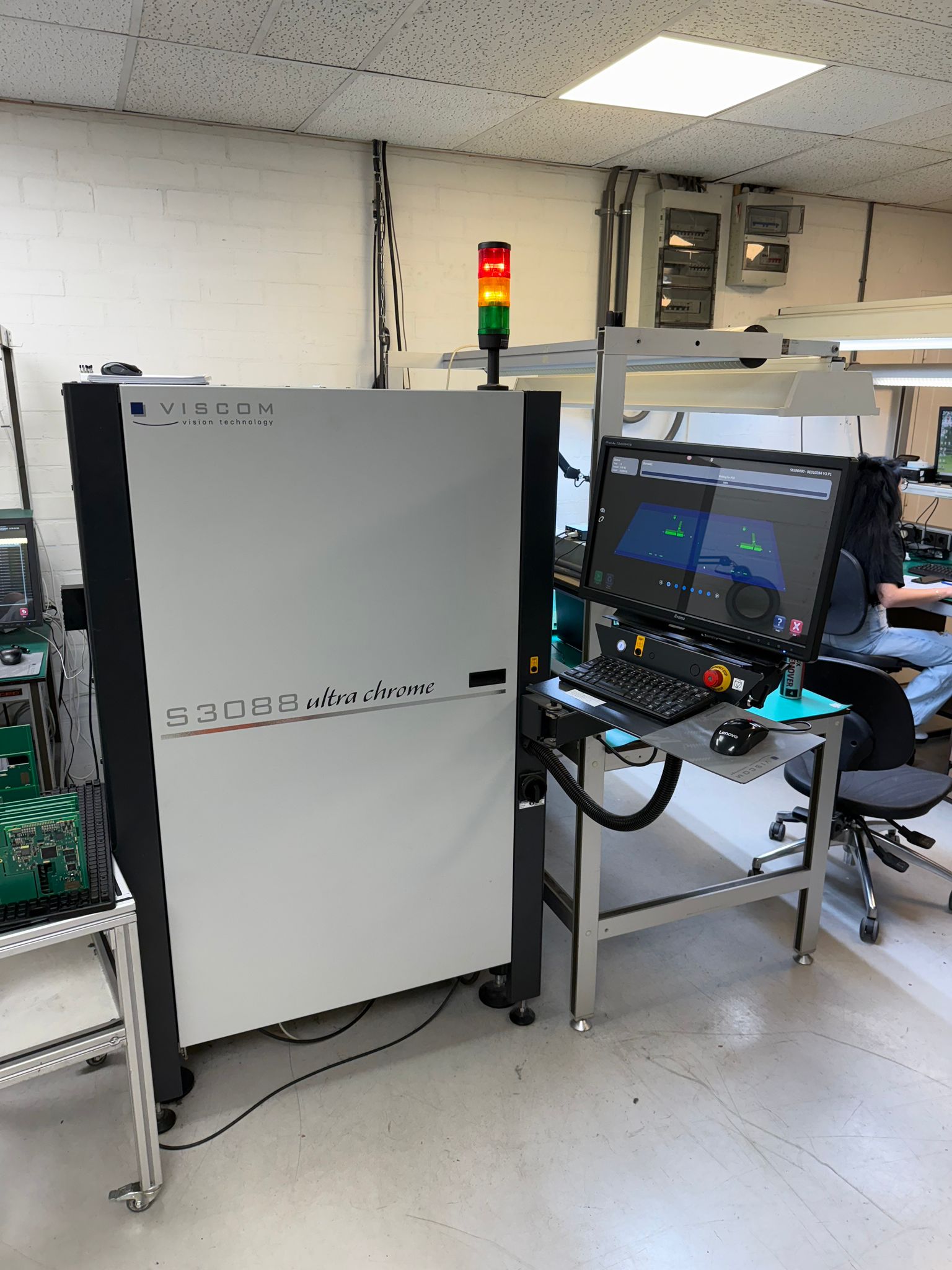

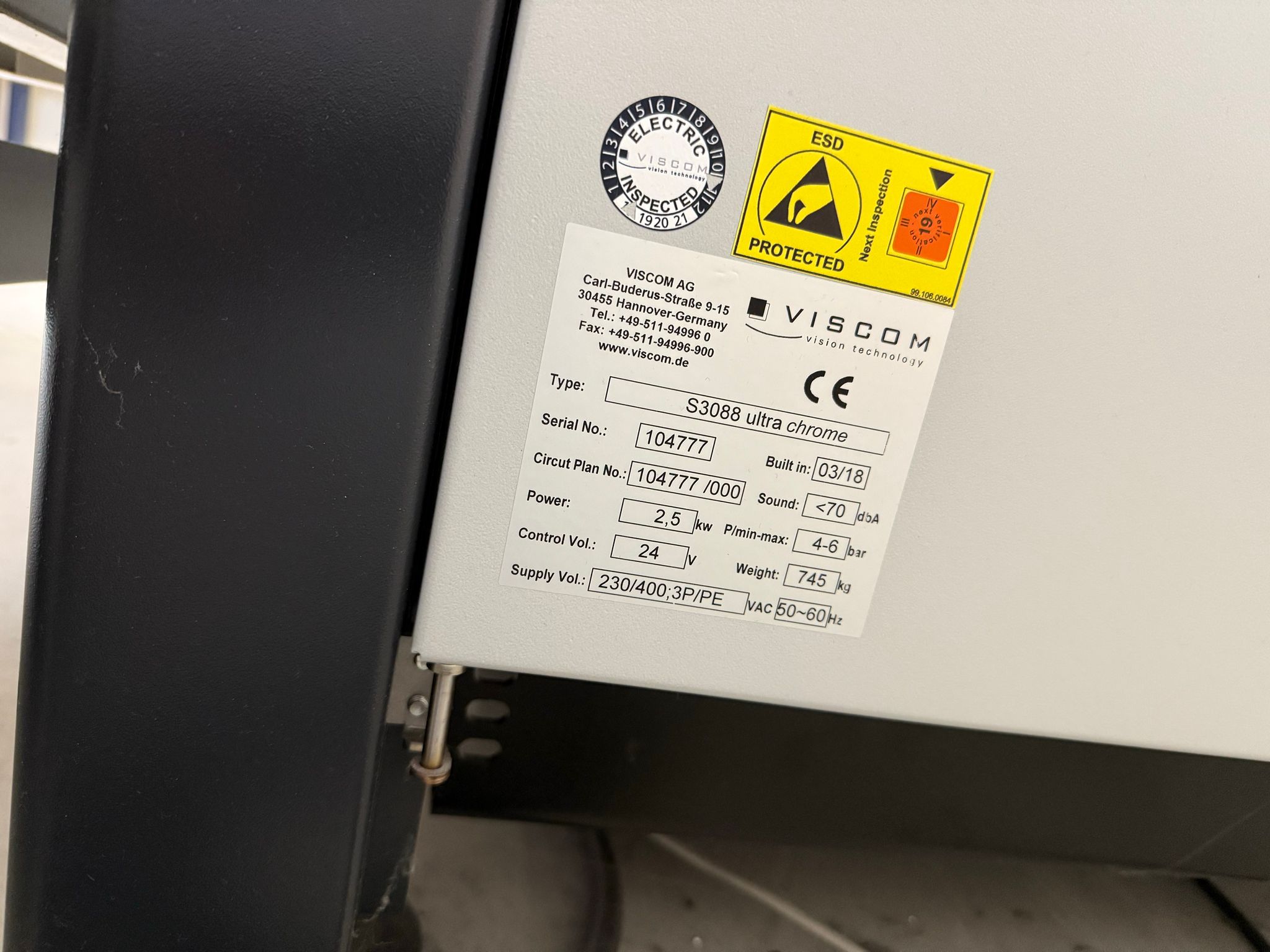

Viscom S3088 Ultra chrome
Extremely fast and precise inspection for high-volume production
Z-resolution 0.5 µm
Z-range Up to 30 mm (1.2")
Angled view cameras
Number of megapixel cameras 8
Orthogonal camera
Resolution 10 µm
Field of view 50 mm x 50 mm (2" x 2")
Inspection speed : Up to 65 cm2/s
Software
User interface Viscom vVision/EasyPro
SPC Viscom SPC (statistical process control),
open interface (optional)
Verification station Viscom vVerify/HARAN
Remote diagnosis Viscom SRC (software remote control) (optional)
Programming station Viscom PST34 (optional)
System computer
Operating system Windows®
Core™ i7
PCB handling
PCB dimensions 508 mm x 508 mm (20" x 20")
Transport height 850 - 950 mm ± 20 mm (33.5" - 37.4" ± 0.8")
Width adjustment Automatic
Transport type Single track transport
PCB clamping Pneumatic
Upper transport clearance 50 mm (2")
Lower transport clearance 45 mm (1.8"), up to 85 mm (3.3") optional;
40 mm (1.6") with PCB support
Other system data
Positioning/handling unit Synchronous linear motors
Interfaces : SMEMA
Power requirements 400 V (other voltages on request), 3P/N/PE, 8 A,
Air : 4 - 6 bar working pressure
System dimensions
W:994 mm x H:1565 mm x D:1349 mm (39.1" x 61.6" x 53.1") (W x H x D)
Weight 720 kg (1587 lbs
