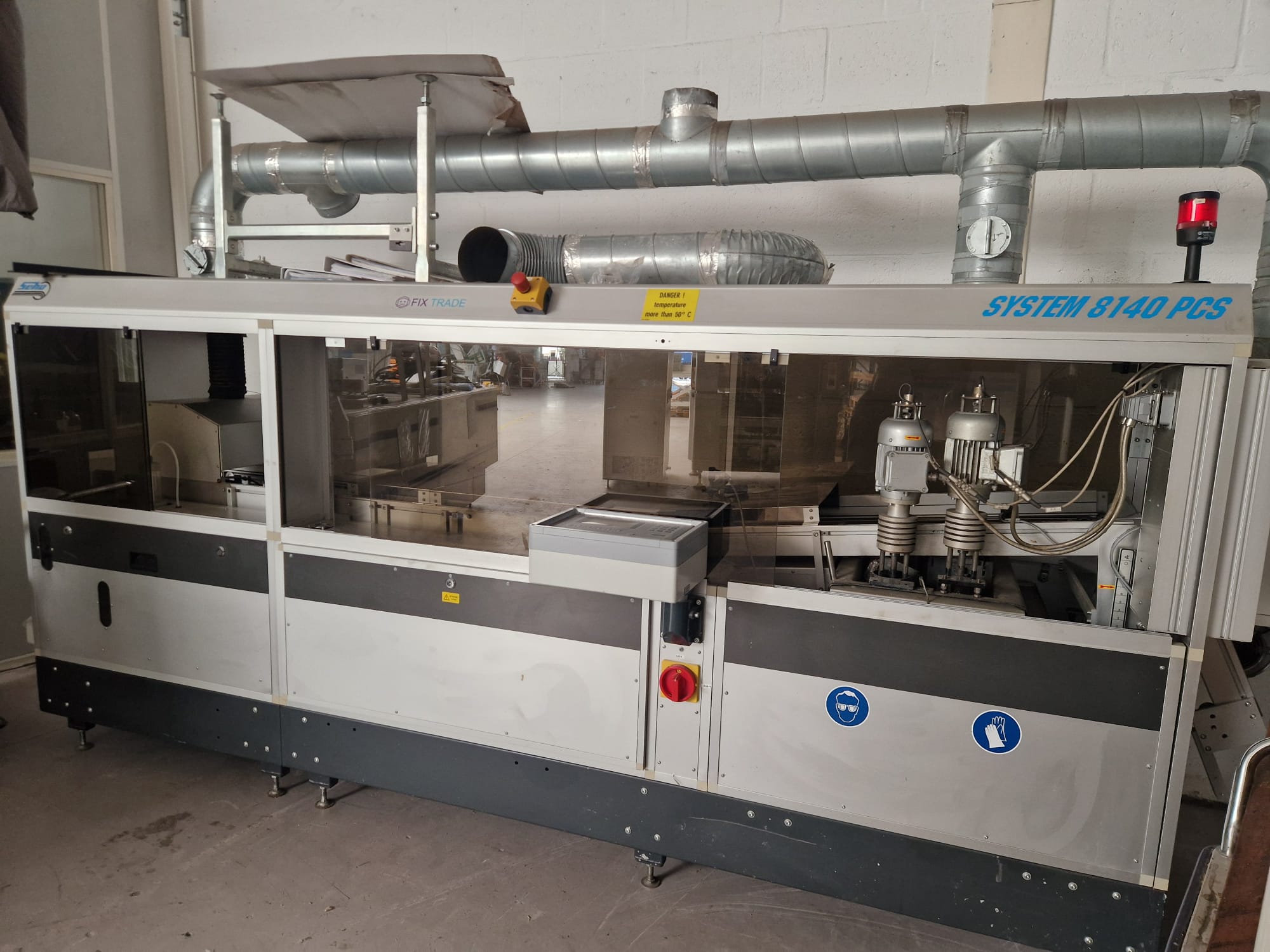

SEHO System 8140 PCS Solder Wave
General Information

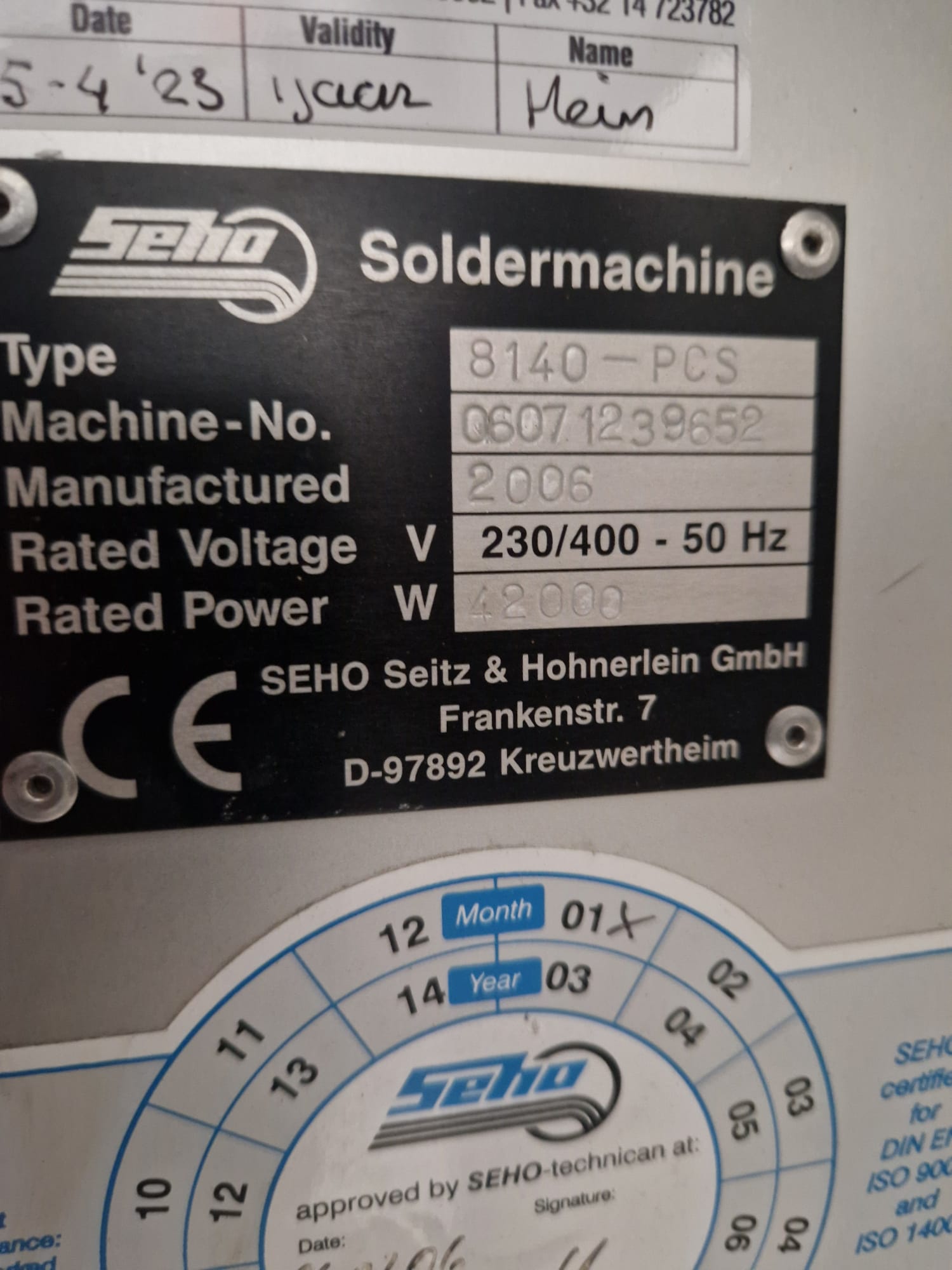

Model: SEHO 8140 PCS
Machine type: Wave soldering system
Suitable for: Through-hole and mixed-technology PCB soldering
Lead-free capable: Yes
Dimensions & Mechanics
Working width: 400 mm
Machine dimensions (L × W × H): 3,800 × 1,000 × 1,800 mm
Extended length (with conveyors): Up to 5,600 mm
Weight: Approx. 1,500 kg

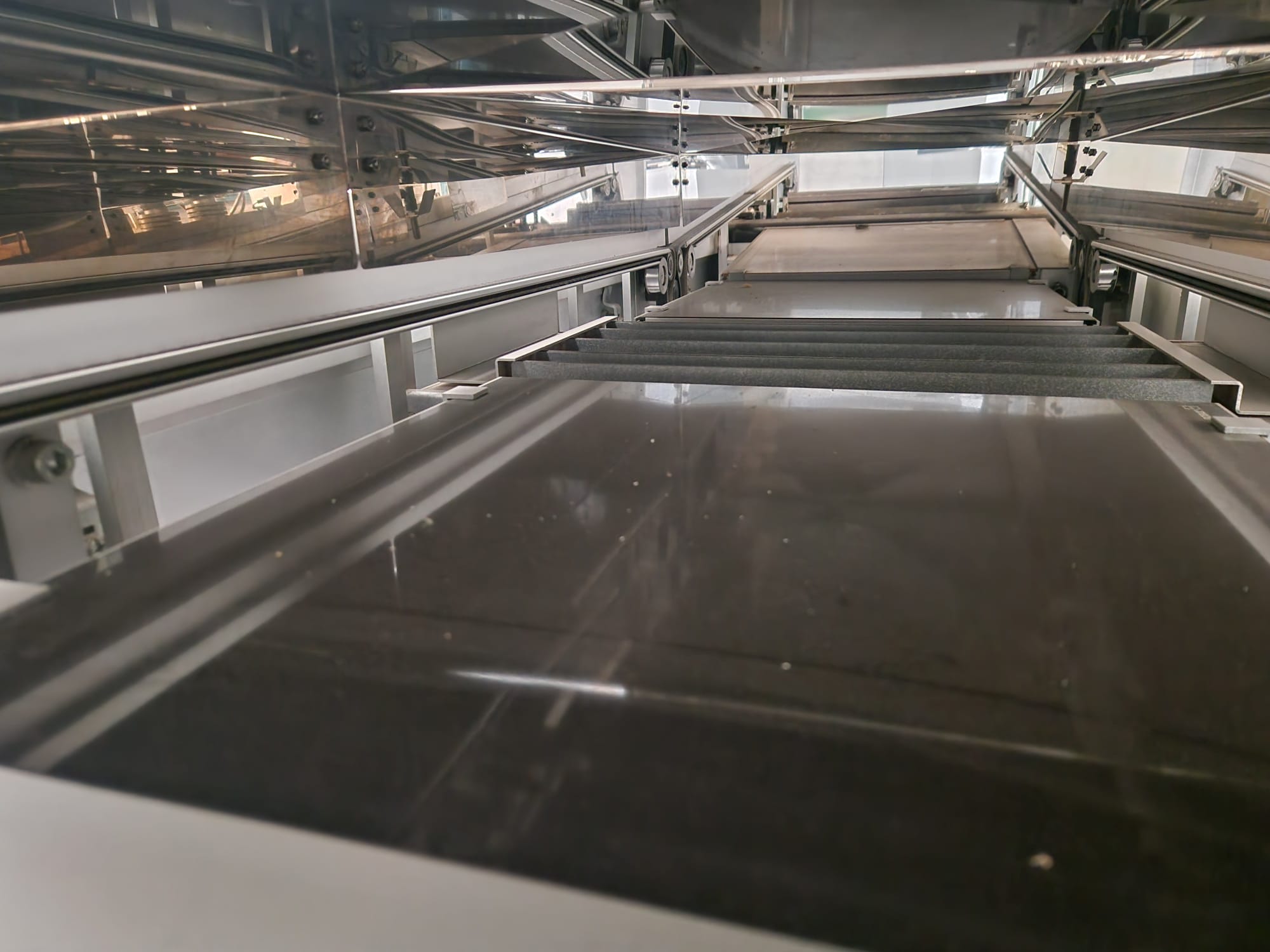

Conveyor & Transport
Conveyor type: Frame conveyor
Max board size: Approx. 465 × 465 mm
Transport speed: 0.4–2.0 m/min
Heating & Soldering
Preheating zones: 2 (including 1 quartz zone)

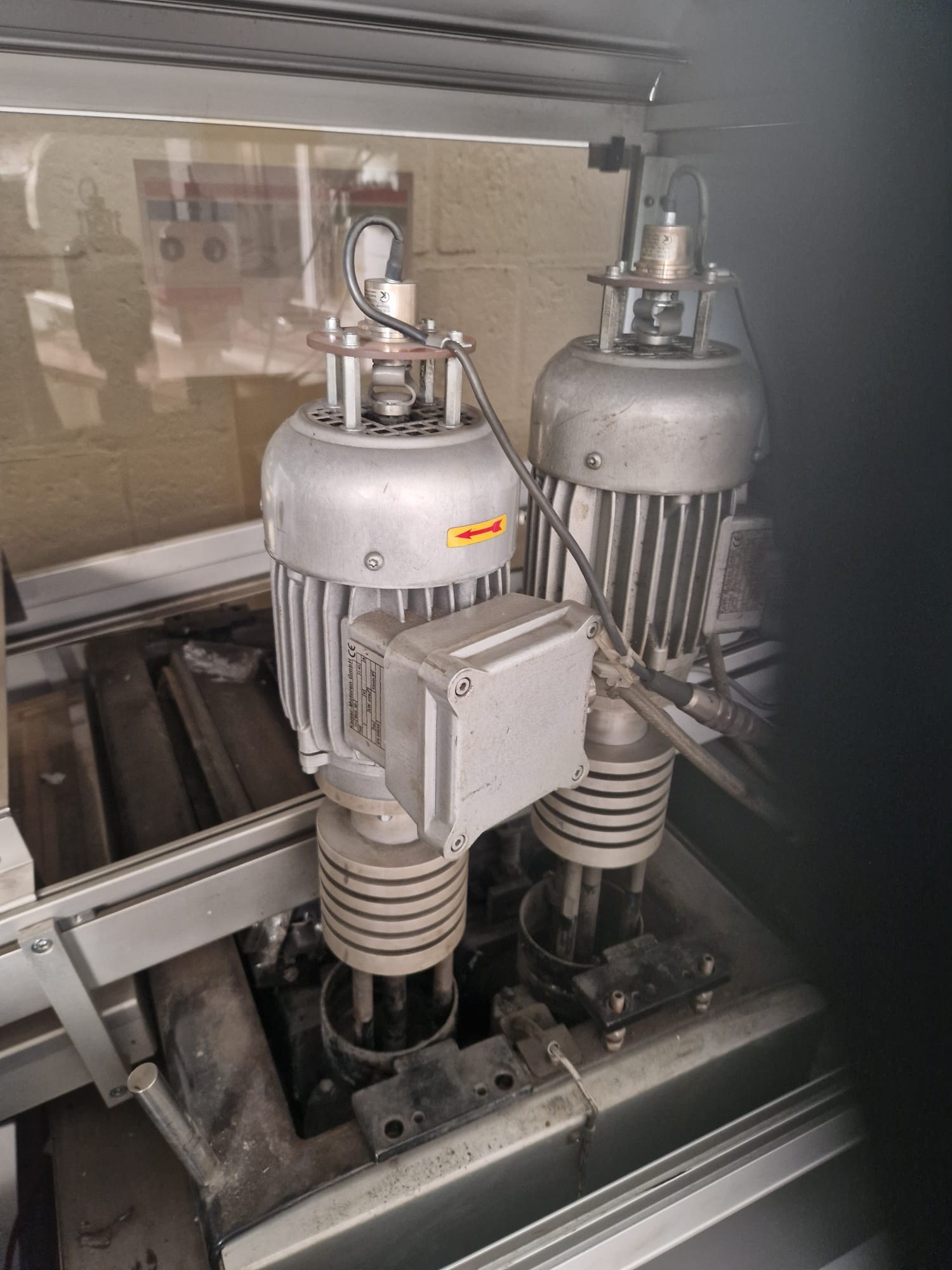

Soldering system: Single or dual wave (e.g., chip and laminar wave)
Solder pot temperature range: Up to ~420 °C
Solder wave height control: Automatic
Electrical
Power supply: 380 V, 3-phase
Startup power consumption: Approx. 130 kW
Steady-state power consumption: Approx. 6 kW
Fluxing
Flux system: Spray fluxer
Nozzle type: HVLP (e.g., Wörthmann style)
Additional features: Automatic nozzle cleaning, flux recovery
Control & Interface
PLC-based control system

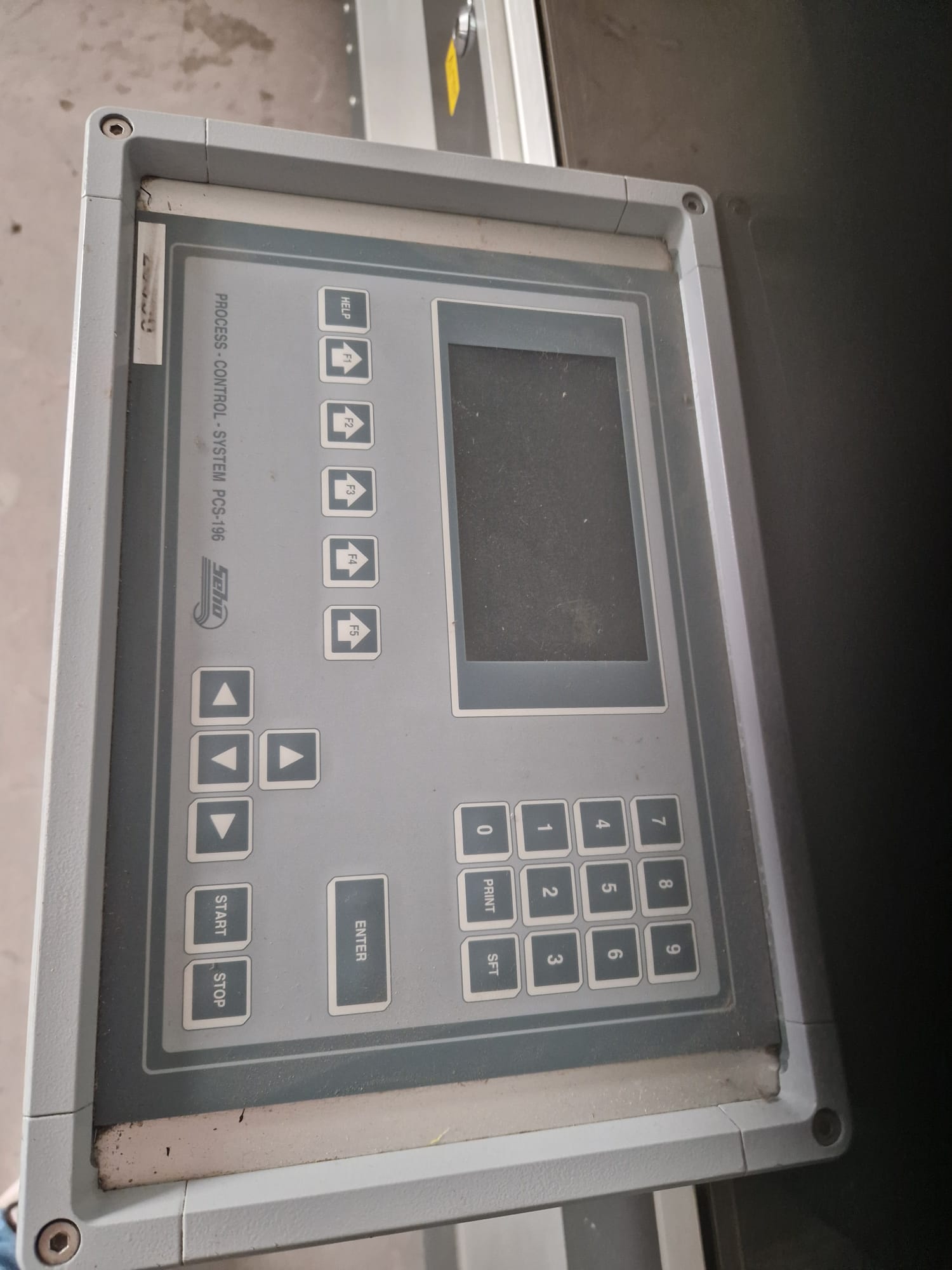

Physical buttons and LCD display (no touchscreen)
Automated conveyor and wave settings
Remote configuration possible depending on setup
Additional Features
Nitrogen-ready (optional)
Aluminum finger frame system
Offline programming supported
Spare PLC unit (in some machines, post-2022)
Maintenance access from both sides
Suitable for both tin-lead and lead-free solders
